SAG | Exterior And Functional Doors

Door locks for real estate

The SAG Premium Line door locks were specially designed for use in large property- and separation doors, in line with the guidelines of the highest DIN Class 5, in accordance with DIN 18251-1 with its requirements for high user frequency and burglary resistance.
The lifelong guarantee underlines the high standard of quality.

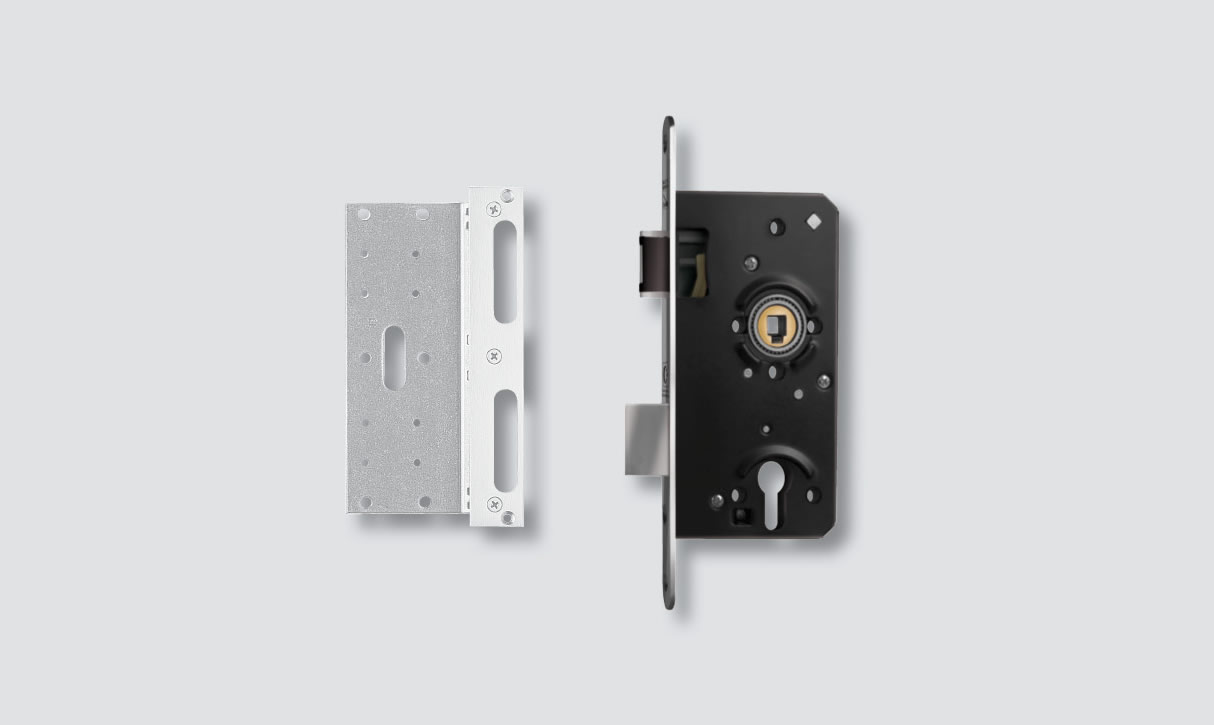

SAG Mortise lock Premium Line # 1 7495WK
SAG Premium Line mortise lock with whisper-comfort sound insulation in accordance with DIN 18251-1, class 5, for property and entrance  doors with increased user frequency and burglary resistance, PZW, 72 mm distance, 55 mm (60 / 65 / 80 mm) backset, 8mm (9mm) clamping nut, ball bearing mounted.

Brochure for the SAG Premium Line - German

Technical drawing #1 7495WK

Catalogue page 2.12 – 2.13

SAG Angled strike-plate, adjustable, with mounting plate  #1 SB9579
SAG Angled strike-plate, adjustable, reinforced, for use in elements with increased security requirements, for rebated closed wooden wrap-around frames, 170mm system length, metallic surface 28mm wide, 3mm material thickness.

Technical drawing #1 SB9579

Catalogue page 2.64 – 2.65
