DIN 18251-1 Class 1

DIN 18251-1 CLASS 1

SAG | İnterior Doors

Locks and strike-plates for lightweight interior doors

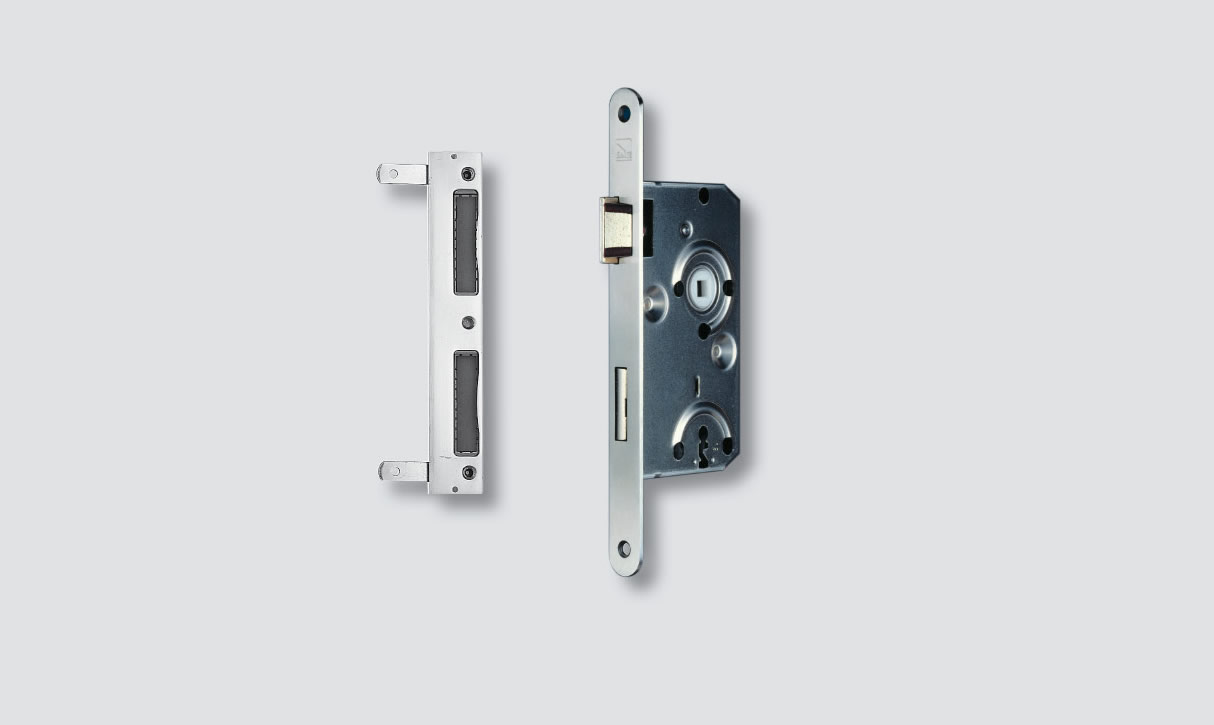

SAG Mortise lock # 1 246000
SAG mortise lock in accordance with DIN 18251-1, class 1 for lightweight interior doors, bit key insert, 72 mm distance, 55 mm backset, 8mm nut stored in drawn casings.

Classification in accordance with DIN EN 12209:   1 R 4 0 0 A – B 0 2 0

Technical drawing #1 246000

Catalogue page 1.8 – 1.9

SAG Strike-plate # 1 SK 2460.Z2
SAG standard strike-plate for closed wooden wrap-around frames, 170 mm system length, mounted using two additional mounting brackets, can be stacked for automated assembly.

Technical drawing #1 SK2460.Z

Catalogue page 1.60 – 1.61
